Fitting Guide

Easy As Pie

Size Guide

There's a very good chance that BARTON's bands will fit your watch perfectly. Most watches have a standard lug that is designed to accommodate any watch band of the proper width. Our watch bands fit thousands of traditional and smart watches with lug widths between 16mm and 24mm. Apple Watch owners should jump straight to our collection of Apple Watch Bands designed to fit all Apple Watch series and sizes. All others, continue on below!

lug width underside watch band

Step 1: Determine lug width by one of the following

  • Check for markings on the underside of your current band.
  • Measure the width using a metric ruler or by printing our measurement template.
  • Smart watch owners can check our table of Common Smart Watch Lug Widths.
  • Search online for the specs of your watch make/model.
Barton Watch Bands Compatible Lug Width Size Chart 16mm 18mm 19mm 20mm 21mm 22mm 23mm 24mm

Step 2: Buy bands to fit lug width

16mm | 18mm | 19mm | 20mm | 21mm| 22mm | 23mm | 24mm

Tips:

  • Currently, our Elite Silicone, Leather, and Alligator Grain quick release straps are the only collections we make in odd lug widths (19mm, 21mm or 23mm). If your watch has an odd sized lug, and you prefer a NATO Style strap, the next size up will squeeze in just fine. If you're crafty, you can also remove the spring bars from a quick release band and reinsert your original odd sized spring bars. Again, 1mm wider is typically the way to go.
  • If you have a smart watch and like to use the heart rate monitor, do not go with the NATO style strap as it will block the heart rate monitor. Opt for a quick release band instead.

Step 3: Switch it up!

All of our bands are designed to be swapped in and out in a few seconds and without tools! Switch it up throughout the week to accessorize your wardrobe or throughout the day to fit the activity. Trust us, it's pretty awesome.

Quick Release:

Simply insert one end of the spring bar into the lug and then slide the quick release lever with your finger.



NATO Style:

Insert spring bars into watch head, then thread band as shown. Using our Quick Release Spring Bars with your NATO Style strap will make it easy to swap between all of our bands in a flash.

barton quick release diagram Barton NATO style installation directions

Adjusting NATO Style Strap Length:

If your NATO Style watch strap is initially longer than desired, fold the free end neatly back into the keeper loop or cut to desired length. If trimmed, expose the cut end to the flame of a match or lighter to avoid fraying. If you still encounter a fit related issue after, you can also take us up on our money back guarantee!

NATO Well Aware strap

If you still have questions or any accessibility issues with this content, please call us at (512) 410-8793 during business hours and our team would be happy to help you. You can also visit our FAQ or contact us any time!

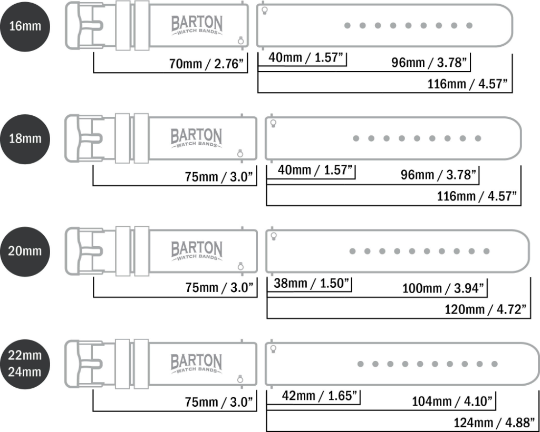

Standard Length Quick Release

Our Canvas,  SailclothElite SiliconeAlligator Grain LeatherTop Grain Leather & Soft Silicone Quick Release bands are designed to fit wrists between 5 1/2" and 8" in circumference. This will cover the vast majority of both men and women. If you are concerned about fit, feel free to test out the band and return it for a full refund if you are not pleased.

Buckle side From Pin to First Hole
(non-buckle side)
Pin to Last Hole
(non-buckle side)
Pin to End of Band
(non-buckle side)
16mm 70mm / 2.76" 40mm / 1.57" 96mm / 3.78" 116mm / 4.57"
18mm 75mm / 3.0" 40mm / 1.57" 96mm / 3.78" 116mm / 4.57"
20mm 75mm / 3.0" 38mm / 1.50" 100mm / 3.94" 120mm / 4.72"
22m
24mm
75mm / 3.0" 42mm / 1.65" 104mm / 4.10" 124mm / 4.88"

Standard Length Quick Release

Standard Length Quick Release

Our Canvas,  SailclothElite SiliconeAlligator Grain LeatherTop Grain Leather & Soft Silicone Quick Release bands are designed to fit wrists between 5 1/2" and 8" in circumference. This will cover the vast majority of both men and women. If you are concerned about fit, feel free to test out the band and return it for a full refund if you are not pleased.

16mm
Buckle side 70mm / 2.76"
From Pin to First Hole
(non-buckle side)
40mm / 1.57"
Pin to Last Hole
(non-buckle side)
96mm / 3.78"
Pin to End of Band
(non-buckle side)
116mm / 4.57"
18mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
40mm / 1.57"
Pin to Last Hole
(non-buckle side)
96mm / 3.78"
Pin to End of Band
(non-buckle side)
116mm / 4.57"
20mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
38mm / 1.50"
Pin to Last Hole
(non-buckle side)
100mm / 3.94"
Pin to End of Band
(non-buckle side)
120mm / 4.72"
22m
24mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
42mm / 1.65"
Pin to Last Hole
(non-buckle side)
104mm / 4.10"
Pin to End of Band
(non-buckle side)
124mm / 4.88"

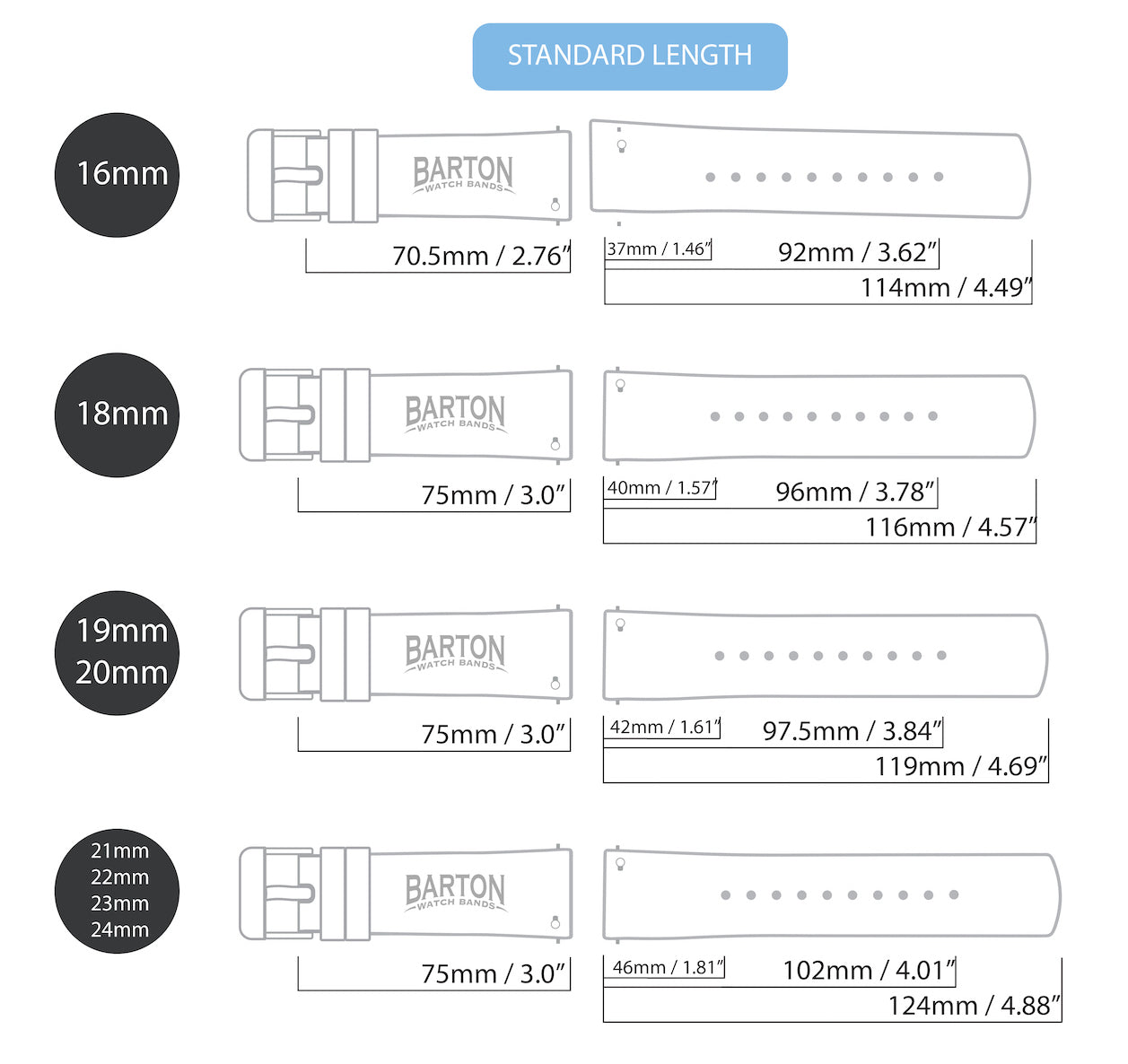

Alligator Grain Leather (Standard Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

Buckle side From Pin to First Hole
(non-buckle side)
Pin to Last Hole
(non-buckle side)
Pin to End of Band
(non-buckle side)
16mm 70.5mm / 2.76" 37mm / 1.46" 92mm / 3.62" 114mm / 4.49"
18mm 75mm / 3.0" 40mm / 1.57" 96mm / 3.78" 119mm / 4.57"
19mm
20mm
75mm / 3.0" 42mm / 1.41" 97.5mm / 3.84" 119mm / 4.69"
21mm
22mm
23mm
24mm
75mm / 3.0" 44mm / 1.81" 102mm / 4.01" 124mm / 4.88"

Alligator Grain Leather (Standard Length)

Alligator Grain Leather (Standard Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

16mm
Buckle side 70.5mm / 2.76"
From Pin to First Hole
(non-buckle side)
37mm / 1.46"
Pin to Last Hole
(non-buckle side)
92mm / 3.62"
Pin to End of Band
(non-buckle side)
114mm / 4.49"
18mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
40mm / 1.57"
Pin to Last Hole
(non-buckle side)
96mm / 3.78"
Pin to End of Band
(non-buckle side)
119mm / 4.57"
19mm
20mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
42mm / 1.41"
Pin to Last Hole
(non-buckle side)
97.5mm / 3.84"
Pin to End of Band
(non-buckle side)
119mm / 4.69"
21mm
22mm
23mm
24mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
44mm / 1.81"
Pin to Last Hole
(non-buckle side)
102mm / 4.01"
Pin to End of Band
(non-buckle side)
124mm / 4.88"

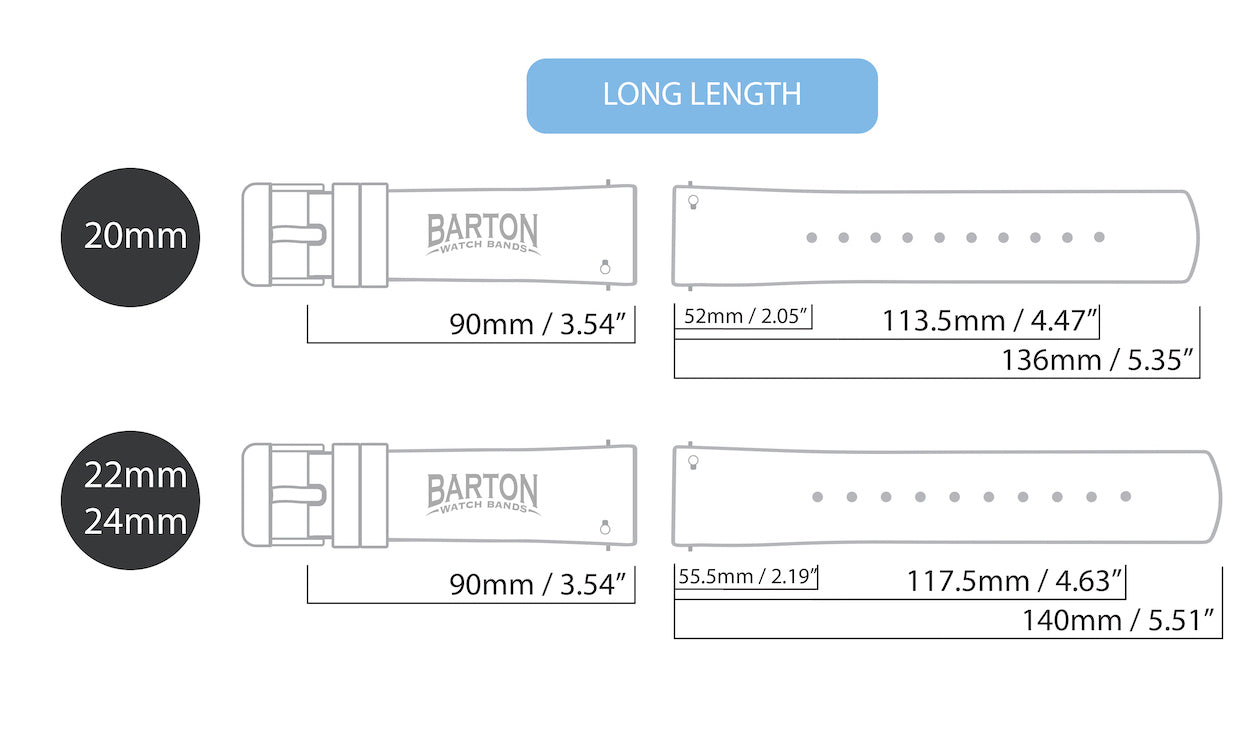

Alligator Grain Leather (Long Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

Buckle side From Pin to First Hole
(non-buckle side)
Pin to Last Hole
(non-buckle side)
Pin to End of Band
(non-buckle side)
20mm 90mm / 3.54" 52mm / 2.05" 113.5mm / 4.47" 136mm / 5.35"
22mm
24mm
90mm / 3.54" 55.5mm / 2.19" 117.5mm / 4.63" 140mm / 5.51"

Alligator Grain Leather (Long Length)

Alligator Grain Leather (Long Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

20mm
Buckle side 90mm / 3.54"
From Pin to First Hole
(non-buckle side)
52mm / 2.05"
Pin to Last Hole
(non-buckle side)
113.5mm / 4.47"
Pin to End of Band
(non-buckle side)
136mm / 5.35"
22mm
24mm
Buckle side 90mm / 3.54"
From Pin to First Hole
(non-buckle side)
55.5mm / 2.19"
Pin to Last Hole
(non-buckle side)
117.5mm / 4.63"
Pin to End of Band
(non-buckle side)
140mm / 5.51"

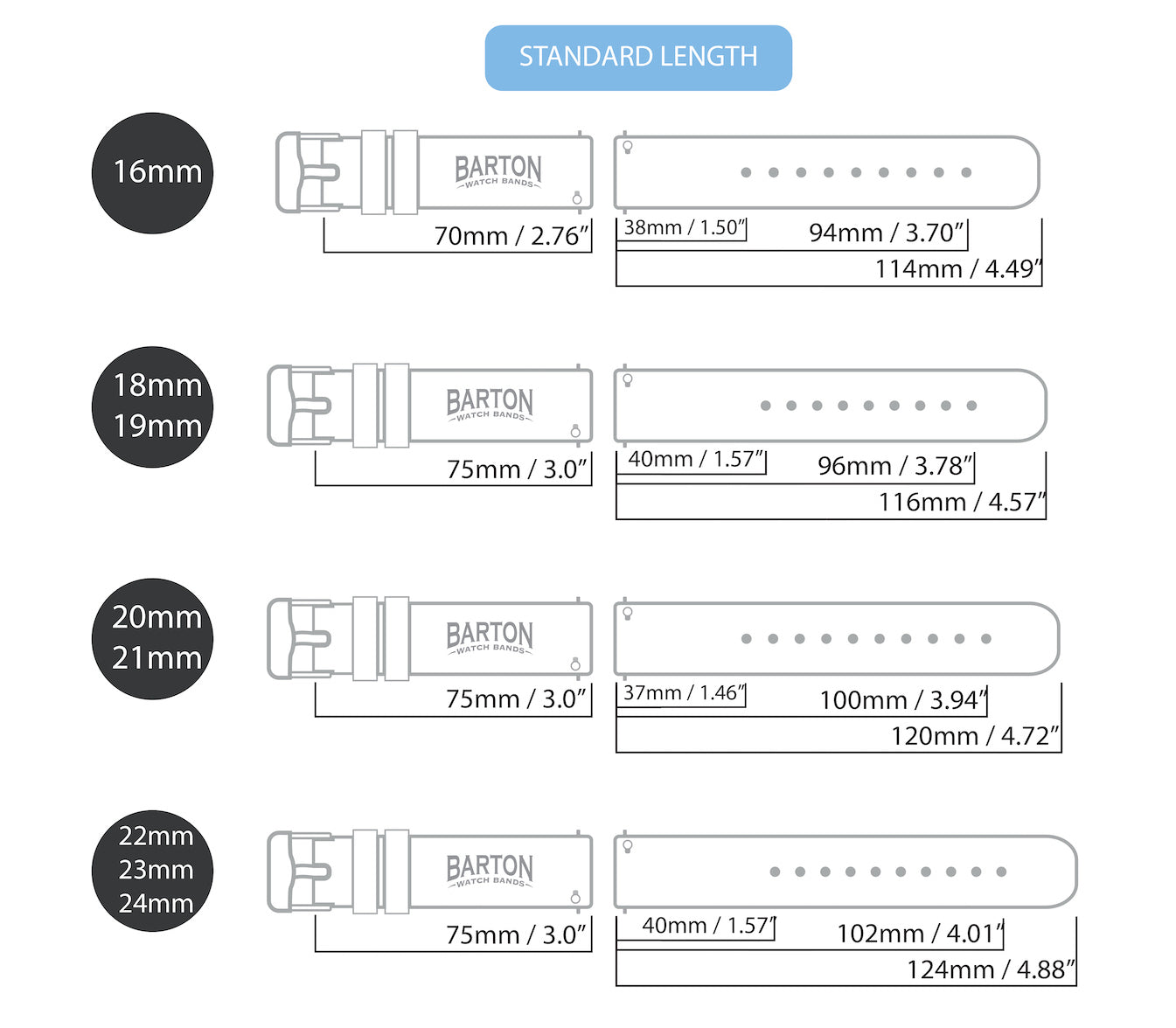

Top Grain Leather (Standard Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

Buckle side From Pin to First Hole
(non-buckle side)
Pin to Last Hole
(non-buckle side)
Pin to End of Band
(non-buckle side)
16mm 70mm / 2.76" 38mm / 1.50" 94mm / 3.70" 114mm / 4.49"
18mm
19mm
75mm / 3.0" 40mm / 1.57" 96mm / 3.78" 116mm / 4.57"
20mm
21mm
75mm / 3.0" 37mm / 1.46" 100mm / 3.94" 120mm / 4.72"
22mm
23mm
24mm
75mm / 3.0" 40mm / 1.57" 102mm / 4.01" 124mm / 4.88"

Top Grain Leather (Standard Length)

Top Grain Leather (Standard Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

16mm
Buckle side 70mm / 2.76"
From Pin to First Hole
(non-buckle side)
38mm / 1.50"
Pin to Last Hole
(non-buckle side)
94mm / 3.70"
Pin to End of Band
(non-buckle side)
114mm / 4.49"
18mm
19mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
40mm / 1.57"
Pin to Last Hole
(non-buckle side)
96mm / 3.78"
Pin to End of Band
(non-buckle side)
116mm / 4.57"
20mm
21mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
37mm / 1.46"
Pin to Last Hole
(non-buckle side)
100mm / 3.94"
Pin to End of Band
(non-buckle side)
120mm / 4.72"
22mm
23mm
24mm
Buckle side 75mm / 3.0"
From Pin to First Hole
(non-buckle side)
40mm / 1.57"
Pin to Last Hole
(non-buckle side)
102mm / 4.01"
Pin to End of Band
(non-buckle side)
124mm / 4.88"

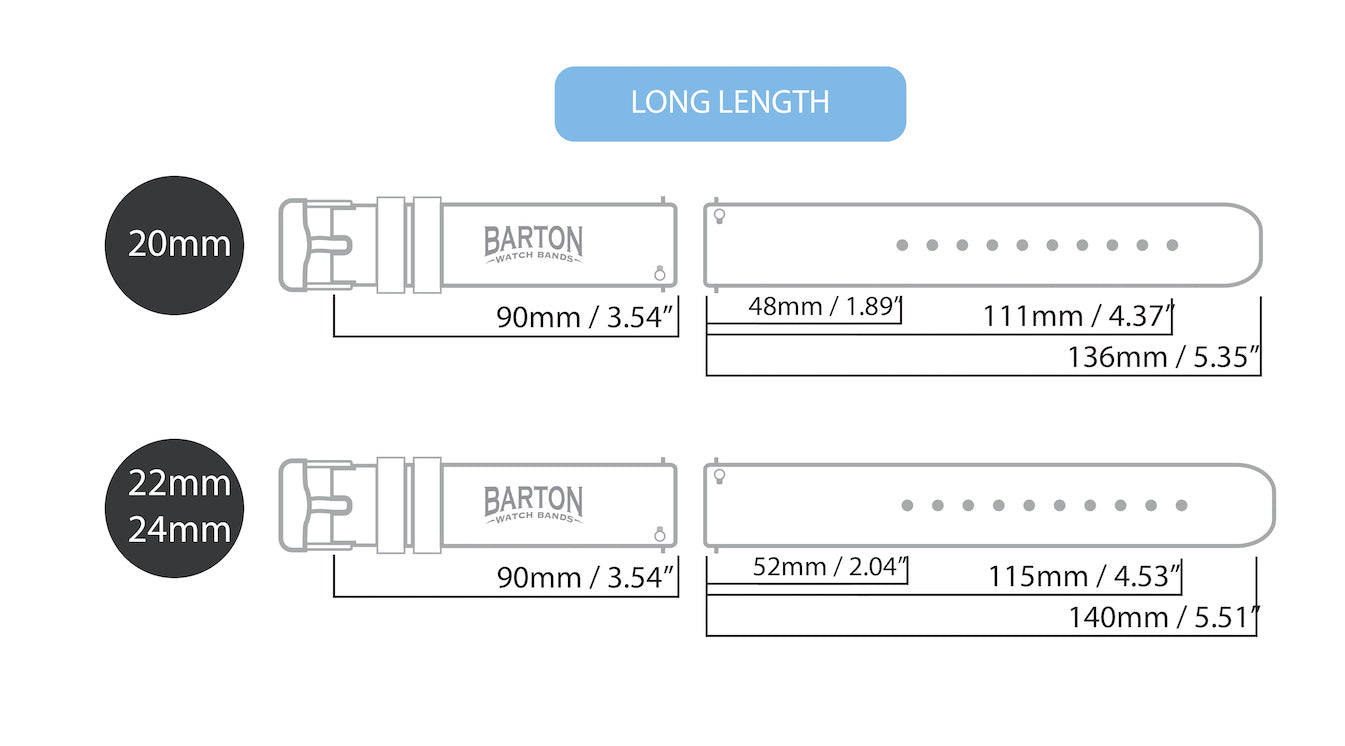

Top Grain Leather (Long Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

Buckle side From Pin to First Hole
(non-buckle side)
Pin to Last Hole
(non-buckle side)
Pin to End of Band
(non-buckle side)
20mm 90mm / 3.54" 48mm / 1.89" 111mm / 4.37" 136mm / 5.35"
22mm
24mm
90mm / 3.54" 52mm / 2.04" 115mm / 4.53" 140mm / 5.51"

Top Grain Leather (Long Length)

Top Grain Leather (Long Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

20mm
Buckle side 90mm / 3.54"
From Pin to First Hole
(non-buckle side)
48mm / 1.89"
Pin to Last Hole
(non-buckle side)
111mm / 4.37"
Pin to End of Band
(non-buckle side)
136mm / 5.35"
22mm
24mm
Buckle side 90mm / 3.54"
From Pin to First Hole
(non-buckle side)
52mm / 2.04"
Pin to Last Hole
(non-buckle side)
115mm / 4.53"
Pin to End of Band
(non-buckle side)
140mm / 5.51"

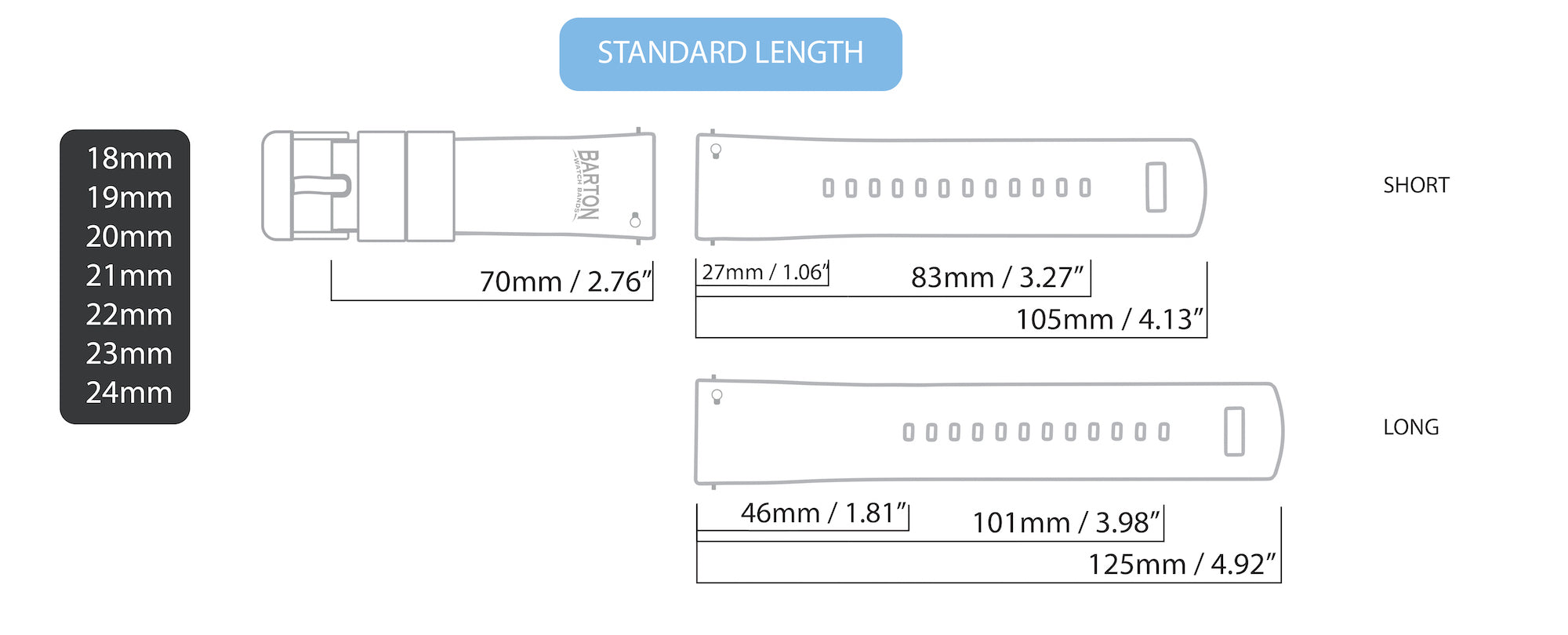

Elite Silicone (Standard Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

18mm
19mm
20mm
21mm
22mm
23mm
24mm
Buckle side From Pin to First Hole
(non-buckle side)
Pin to Last Hole
(non-buckle side)
Pin to End of Band
(non-buckle side)
Short 70mm / 2.76" 27mm / 10.4" 83mm / 3.27" 105mm / 4.13"
Long 70mm / 2.76" 46mm / 1.81" 101mm / 3.98" 125mm / 4.92"

Elite Silicone (Standard Length)
(18mm | 19mm | 20mm | 21mm | 22mm | 23mm | 24mm)

Elite Silicone (Standard Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

Short
Buckle side 70mm / 2.76"
From Pin to First Hole
(non-buckle side)
27mm / 10.4"
Pin to Last Hole
(non-buckle side)
83mm / 3.27"
Pin to End of Band
(non-buckle side)
105mm / 4.13"
Long
Buckle side 70mm / 2.76"
From Pin to First Hole
(non-buckle side)
46mm / 1.81"
Pin to Last Hole
(non-buckle side)
101mm / 3.98"
Pin to End of Band
(non-buckle side)
125mm / 4.92"

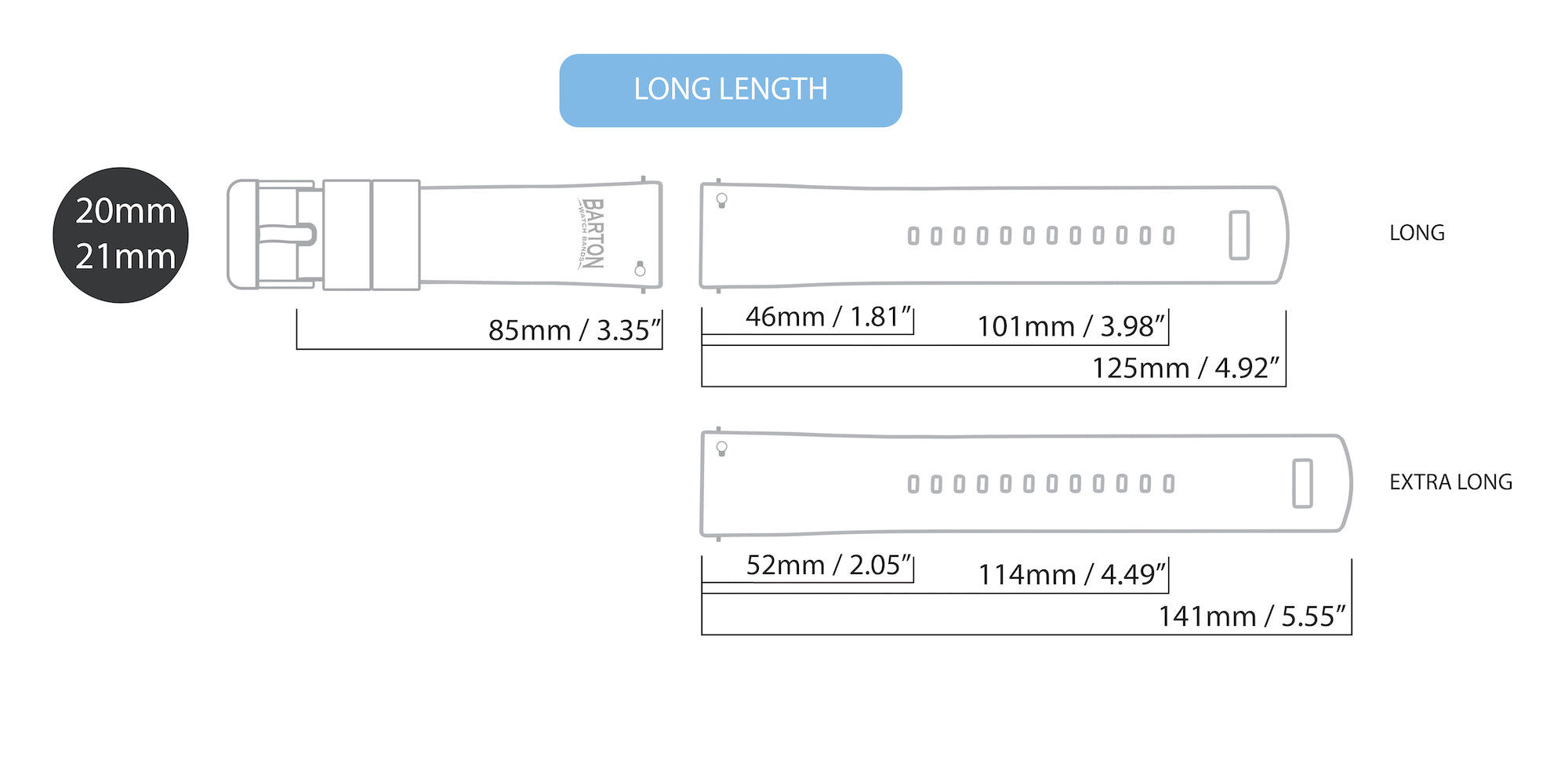

Elite Silicone (Long Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

20mm
21mm
Buckle side From Pin to First Hole
(non-buckle side)
Pin to Last Hole
(non-buckle side)
Pin to End of Band
(non-buckle side)
Long 85mm / 3.35" 46mm / 1.81" 101mm / 3.98" 125mm / 4.92"
Extra Long 85mm / 3.35" 52mm / 2.05" 114mm / 4.49" 141mm / 5.55"

Elite Silicone (Long Length)
(20mm | 21mm)

Elite Silicone (Long Length)

Our Alligator Grain LeatherTop Grain Leather & Elite Silicone Quick Release straps also fit a slightly broader range of wrists from 5" - 9" inches in circumference.

Long
Buckle side 85mm / 3.35"
From Pin to First Hole
(non-buckle side)
46mm / 1.81"
Pin to Last Hole
(non-buckle side)
101mm / 3.98"
Pin to End of Band
(non-buckle side)
125mm / 4.92"
Extra Long
Buckle side 85mm / 3.35"
From Pin to First Hole
(non-buckle side)
52mm / 2.05"
Pin to Last Hole
(non-buckle side)
114mm / 4.49"
Pin to End of Band
(non-buckle side)
141mm / 5.55"

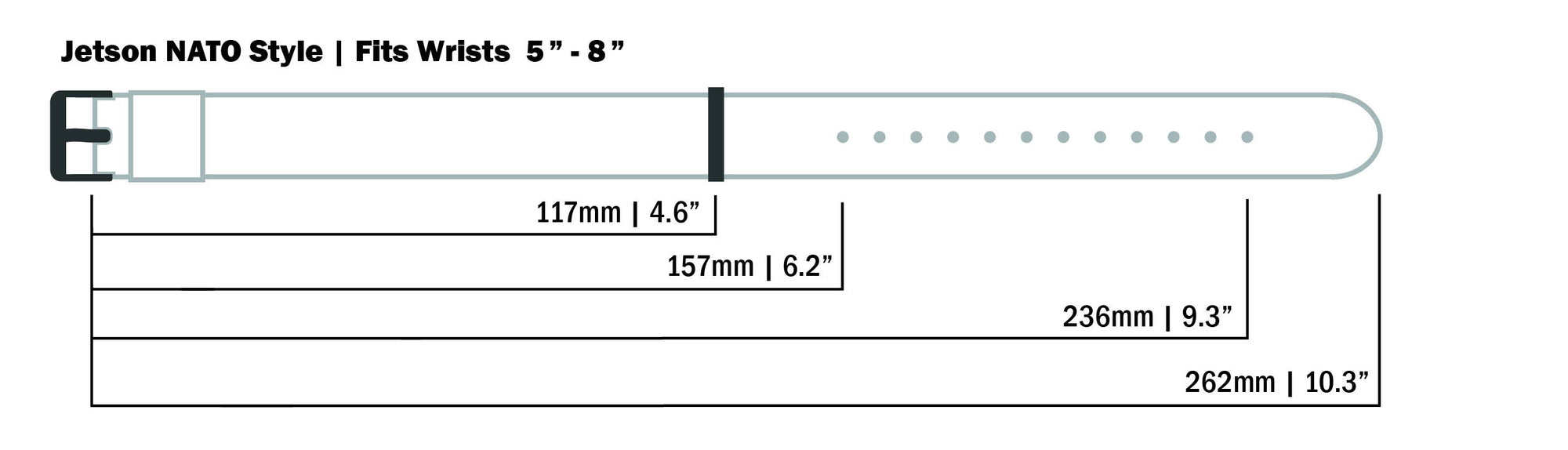

Jetson NATO Style

All widths of our Jetson NATO Style straps are available in a single standard length of 10.3" (270mm) and generally fits wrists from 5" to 8" in circumference. This will accommodate the vast majority of both men & women. If your strap is initially too long, see below for tips on adjusting length.

Buckle to Loop From Buckle to First Hole
(non-buckle side)
From Buckle to to Last Hole
(non-buckle side)
From Buckle to to End of Band
(non-buckle side)
Fits Wrists 5" - 8" 117mm / 4.6" 157mm / 6.2" 236mm / 9.3" 262mm / 10.3"

Jetson NATO Style

Jetson NATO Style

All widths of our Jetson NATO Style straps are available in a single standard length of 10.3" (270mm) and generally fits wrists from 5" to 8" in circumference. This will accommodate the vast majority of both men & women. If your strap is initially too long, see below for tips on adjusting length.

Fits Wrists 5" - 8"
Buckle to Loop 117mm / 4.6"
From Buckle to First Hole
(non-buckle side)
157mm / 6.2"
From Buckle to to Last Hole
(non-buckle side)
236mm / 9.3"
From Buckle to to End of Band
(non-buckle side)
262mm / 10.3"

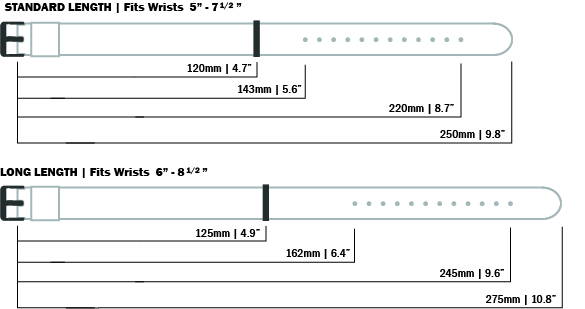

Ballistic Nylon & Leather NATO Styles

Both the Ballistic Nylon Nato Style and Leather NATO Style straps  are available in two lengths. The 'standard' length (10") fits wrists from 5" to 7 1/2" in circumference and is available in widths of 18mm, 20mm and 22mm. The 'long' version (11") generally fits wrists from 6" to 8 1/2" and is available in 20mm, 22mm and 24mm widths. Those with wrists under 7" typically prefer the 'standard' length band and those with wrists over 7 1/4" typically prefer the 'long' band. If your strap is initially too long, see below for tips on adjusting length.

Buckle to Loop From Buckle to First Hole
(non-buckle side)
From Buckle to to Last Hole
(non-buckle side)
From Buckle to to End of Band
(non-buckle side)
Standard Length
Fits Wrists 5" - 7 1/2"
120mm / 4/7" 143mm / 5.6" 220mm / 8.7" 250mm / 9.8"
Long Length
Fits Wrists 6" - 8 1/2"
125mm / 4.9" 162mm / 6.4" 245mm / 9.6" 275mm / 10.8"

Ballistic Nylon & Leather NATO Styles

Ballistic Nylon & Leather NATO Styles

Both the Ballistic Nylon Nato Style and Leather NATO Style straps  are available in two lengths. The 'standard' length (10") fits wrists from 5" to 7 1/2" in circumference and is available in widths of 18mm, 20mm and 22mm. The 'long' version (11") generally fits wrists from 6" to 8 1/2" and is available in 20mm, 22mm and 24mm widths. Those with wrists under 7" typically prefer the 'standard' length band and those with wrists over 7 1/4" typically prefer the 'long' band. If your strap is initially too long, see below for tips on adjusting length.

Standard Length
Fits Wrists 5" - 7 1/2"
Buckle to Loop 120mm / 4/7"
From Buckle to First Hole
(non-buckle side)
143mm / 5.6"
From Buckle to to Last Hole
(non-buckle side)
220mm / 8.7"
From Buckle to to End of Band
(non-buckle side)
250mm / 9.8"
Long Length
Fits Wrists 6" - 8 1/2"
Buckle to Loop 125mm / 4.9"
From Buckle to First Hole
(non-buckle side)
162mm / 6.4"
From Buckle to to Last Hole
(non-buckle side)
245mm / 9.6"
From Buckle to to End of Band
(non-buckle side)
275mm / 10.8"

Support
